Datasheet

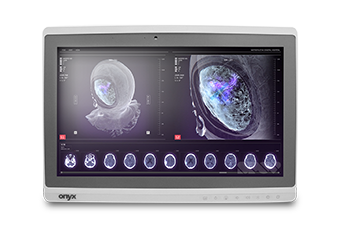

MATE-2405

24” Fanless Core i7 Medical AIO

Product Feature

• Intel® 8th/9th Generation Core™ i7/ i5 / i3 Processor
• Intel® H310 Chipset
• Supports Dual Channel DDR4 2666 SODIMM up to64GB
• 24" Full HD High Contrast MVA LCD
• Capacitive Multi-Touch Screen
• Two Gigabit Ethernet
• High Speed USB 3.0 Ports
• RS-232 x 2
• PCI-Express x [4] x 1 (optional)
• +12V DC Input

Datasheet

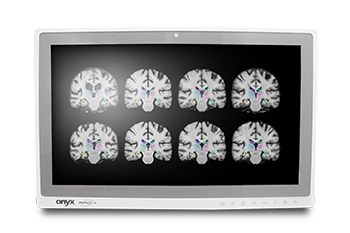

MATE-2205

22” Fanless Core i7 Medical AIO

Product Feature

• Intel® 9th Generation Core™ i7/ i5 / i3 Processor
• Intel® H310 Chipset
• Supports Dual Channel DDR4 2666 SODIMM up to 64GB
• 22" Full HD High Contrast MVA LCD
• Capacitive Multi-Touch Screen
• Two Gigabit Ethernet
• High Speed USB 3.0 Ports
• RS-232 x 2
• PCI-Express [x4] x 1 (optional)
• +12V DC Input

Datasheet

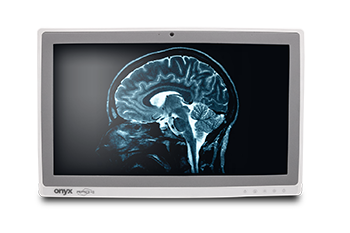

MATE-2204

22” Fanless AMD Ryzen Embedded V1000 Medical AIO

Product Feature

• AMD Ryzen Embedded V1605B Quad Core Processor
• AMD Vega GPU with 8 Compute Units
• Supports Dual Channel ECC/Non-ECC DDR4 2400 SODIMM up to 32GB
• 22” FHD High Contrast MVA LCD
• Capacitive Multi-Touch Screen/5-Wire Resistive Touch Screen
• Supports Three Display Outputs: HDMI 2.0 + DisplayPort 1.4 + USB 3.1 Type-C
• 2 x Gigabit Ethernet
• 3 x High Speed USB 3.1 Ports ,
• 2 x RS-232
• 1 x PCI Express[x4] Slot (optional)
• +12V DC Input

Datasheet

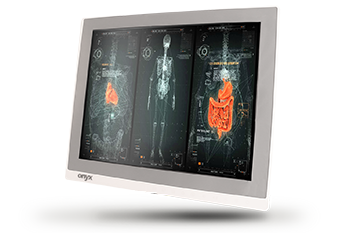

MATE-1903

19” Fanless Core i7 Medical AIO

Product Feature

• Intel® 6th Generation Core™ i7/ i5 / i3 Processor
• Intel® H110 Chipset
• Supports Dual Channel DDR4 2133 SODIMM up to 32GB
• 19" SXGA LCD with LED Backlight
• 5-Wire Resistive Touch Screen / Capacitive Multi-Touch Screen
• Two Gigabit Ethernet
• High Speed USB 3.0 Ports
• RS-232 x 2
• PCI-Express x [1] x 1 (optional)
• +12V DC Input
